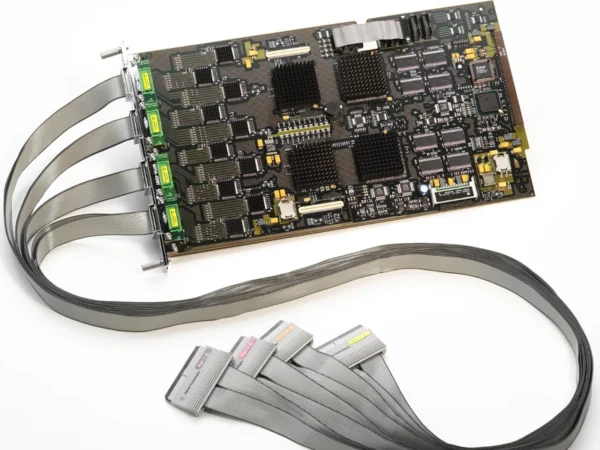

16950A 68 Channel 600 MHz State, 4 GHz Timing Logic Analyser Module

68 channels
4 GHz (250 ps) timing zoom with 64K memory depth
600 MHz / 1.2 GHz (full / half-channel) conventional timing with deep memory
600 MHz transitional timing
Selectable memory depths of 256K, 1M, 4M, 16M, 32M, or 64M
Supports clock rates up to 600 MHz
Supports data rates up to 800 Mb/s
Comprehensive single-ended threshold support (-3V to 5V in 10 mV increments)
Eyefinder automatically adjusts setup and hold for accurate measurements on high-speed buses
Eye scan mode provides rapid multi-channel signal integrity characterization
