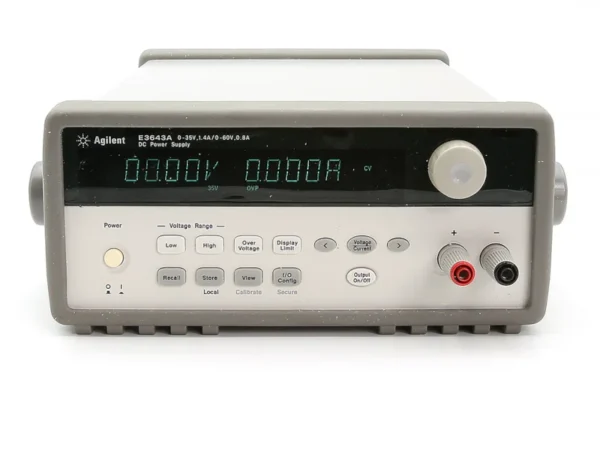

E3643A 50W, 35V/1,4A or 60V/0,8A, DC power supply

The E3643A 50 W bench power supply has dual-range flexibility with a low and high voltage range. The low voltage range allows the power supply to output more current.

Specifications:

Output Ratings (@ 0C to 40C)

• Range 1: 0 to 35 V /1.4 A

• Range 2: 0 to 60 V / 0.8 A

Programming Accuracy (@ 25C /-5C), /-(% output offset)

• Voltage: 0.05% 10 mV (0.1% 25 mV for output 2 of E3646/47/48/49A)

• Current: 0.2% 10 mA

Ripple & noise 20 Hz to 20 MHz

• Normal Mode Voltage: 8 mVpp / 1 mVrms

• Normal Mode Current: 4 mArms

• Common Mode Current: 1.5 uArms

Readback Accuracy (@ 25C /-5C), /-(% output offset)

• Voltage: 0.05% 5 mV (0.1% 25 mV for output 2 of E3646/47/48/49A)

• Current: 0.15% 5 mA (0.15% 10 mA for output 2 of E3646/47/48/49A)
