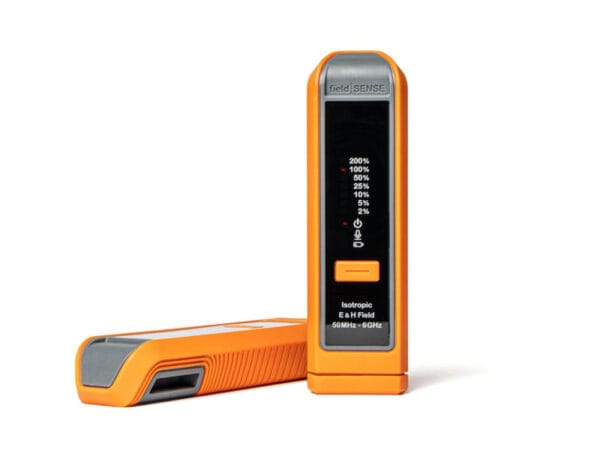

FieldSENSE 2.0 personal RF monitor, 50MHz – 6GHz

The fieldSENSE 2.0 has a proven track record of ensuring on-site employee safety. The frequency range covers 50 MHz – 6 GHz, which covers all typical television and FM radio broadcast services and mobile telecommunications services amongst others. Exposure is accurately assessed, and a warning is sounded, should the levels approach and exceed the occupational limits.

• Frequency range of operation: 50 MHz – 6 GHz

• Sensor polarisation: Isotropic

• Isotropy: ± 3 dB

• Probes E-field & H-field (3 orthogonal probes each)

• Result type Time-averaged RMS power density

• Battery type: 2 x 1,5 V size AAA (LR03) alkaline

Frequency response Shaped (Occupational/Controlled)

• ICNIRP (2020)

• FCC [NCRP] OET65 (1997)

• Canada Safety Code 6 (2015)

• EU Directive 2013/35/EU

The fieldSENSE 2.0 has a co-molded enclosure with a base layer made of polycarbonate, which is typically used in riot shields, and an outer elastomer layer made of TPU, which is designed for tough, rugged environments. The device is shipped with a heavy-duty zipper case and custom molded insert to further protect the device. The device records all measurements using a dedicated E & H field data logger to accurately track exposure levels while working. Then, data can easily be accessed via USB connection to any PC using the free fieldSENSE software, available for download at www.fieldsense.com.

Includes a rugged, reusable zipper case,  an adjustable wrist strap and an adjustable elastomer harness strap.
