FPL1007 Signal & Spectrum Analyser 5kHz-7,5GHz, -148dBm to +30dBm

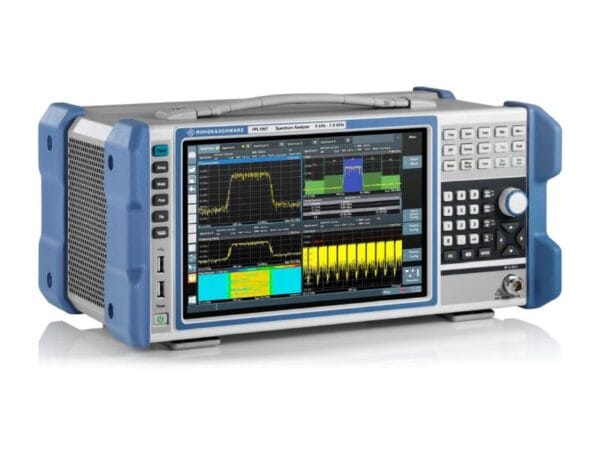

Rohde & Schwarz FPL1007 Signal & Spectrum Analyser 5 kHz – 7,5 GHz (1304.0004.07)  makes measuring fast and simple. The intuitive touchscreen is straightforward and easy to use. With solid RF performance, light weight and small footprint, the R&S FPL1000 combines the functions of a benchtop instrument with the portability of a handheld instrument.

In an RF lab, the R&S FPL1000 is as indispensable as an oscilloscope or multimeter. – It is a single measuring instrument for a variety of measurement tasks. It supports not only spectrum analysis, but also highly accurate power measurement with power sensors and analysis of analog and digitally modulated signals. The R&S FPL1000 is the only instrument in its class that features an internal generator up to 7.5 GHz (R&S FPL1-B9 option).

• Internal Generator 5 kHz – 7,5 GHz (FPL1-B9)
• RF preamplifier 2 MHz to 3 / 7,5 GHz, Gain 20 dB (FPL1-B22)
• Additional interfaces: User port, noise source control, power sensor, IF/video/demod out, AF output (FPL1-B5)
• EMI measurement application for diagnostics of RF interference (FPL1-K54)
