Fabricant : Keysight

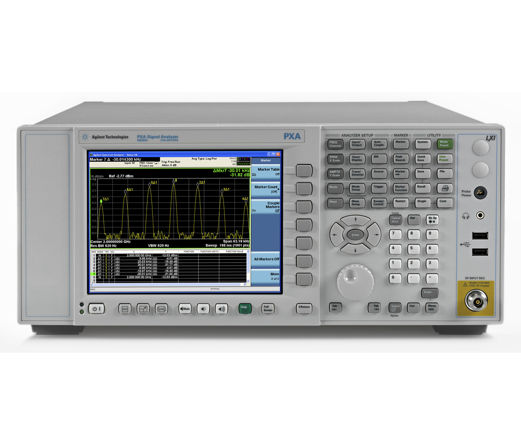

N9030A-508 8.4 GHz PXA Signal Analyzer, Type N (f)
The X-Series Signal Analyzers from Keysight includes the N9030A. The N9030A-508 comes in a 3 Hz to 8.4 GHz frequency range and boasts a variety of features and capabilities. The N9030A’s list of features includes the following:
Functionality:
3 Hz to 8.4 GHz
10 MHz (standard), 25, 40 or 140 MHz analysis bandwidth
12 markers, marker table, and simultaneous detectors
Performance:
/-0.19 dB absolute amplitude accuracy
20 dBm third order intercept (TOI)
-172 dBm displayed average noise level (DANL)
-83 dBc W-CDMA ACLR dynamic range (with noise correction on)
Measurement Applications & Software:
Noise figure, pulse, phase noise and more
Advanced analysis of more than 70 signal formats; software runs inside the PXA
MATLAB data analysis software for general purpose data analysis, visualization, and measurement automation
Automation & Communication Interface:
LXI class C compliant, SCPI and IVI-COM
USB 2.0, 1000Base-T LAN, GPIB
Programming remote language compatibility with PSA, 8566/68, and 856x
Common X-Series user interface/Open Windows XP operating system
Get Keysight N9030A-508 PXA Signal Analyzer is available for rent . Request a quote today.
