Fabricant : Rohde & Schwarz

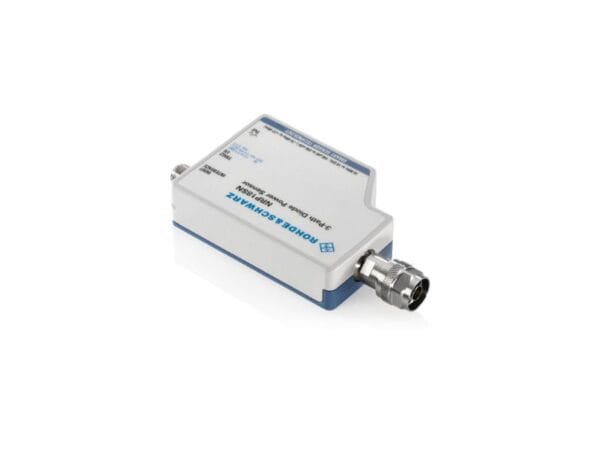

NRP18SN 10MHz-18GHz, 3-path diode power sensor LAN interface, -70 dBm – +23 dBm, N(m)
R&S RP18SN power sensor (1419.0035.02) + NRP-ZKU USB-A interface cable (1419.0658.03).
It has a frequency range of 10 MHz to 18 GHz and a dynamic range of -70 dBm – +23 dBm (100 pW to 200 mW). It comes with a N male connector and a LAN interface.
The R&S NRPxxS/SN power sensors use three separate diode paths, each operated in the optimum detector range. As a result, the average power can be determined with high accuracy independent of the modulation type. Measurement results are hardly affected by interfering signals or harmonics. The R&S NRPxxS/SN power sensors therefore behave in a way similar to thermal power sensors but offer significantly higher speed. They provide up to 93 dB dynamic range with an excellent lower measurement limit of –70 dBm.
• Fast and accurate power measurements for CW and modulated signals
• 100,000 readings/s
• Control and monitoring via USB (NRP-ZKU needed) and LAN (only for NRPxxSN types and the NRP33SN-V/67SN-V)
• Sensors for high-power applications
• Flexible operation with R&S NRX base unit
