ZNB3004 2-port Vector network analyser, 9kHz – 9GHz, type N (f)

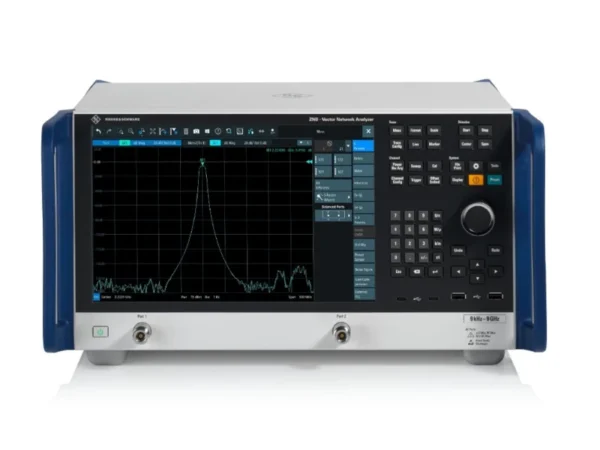

R&S ZNB3004 2-port Vector Network Analyser, 9 kHz – 4,5 GHz (9 GHz), N (f) (1351.5050.02)
• ZNB3-B082 Frequency upgrade to 9 GHz
• ZNB3-B22 Extended power range down to -60dBm
• ZNB3-K18 Gain Compression Measurements including CW and Compression Point versus Frequency

With frequency ranges from 9 kHz to 4.5 GHz, 9 GHz, 20 GHz and 26.5 GHz, the R&S ZNB3000 vector network analyzers are ideal for applications in the communications, aerospace and defense industries.
High-volume production of RF components and short ramp-up times is the environment where the R&S ZNB3000 shines and delivers maximum results.
The R&S ZNB3000 has a flexible upgrade concept to rapidly scale up and adapt to your requirements.
The measurement speed, stability, outstanding RF performance and extended functions make the R&S ZNB3000 the instrument to get the job done.

Key facts
• Frequency ranges from 9 kHz up to 26.5 GHz
• Two or four ports
• Wide dynamic range of up to 150 dB
• Ultrafast sweep cycle times of 11.8 ms (1601 points, 1 MHz to 26.5 GHz)
• High output power: 11 dBm @ 26.5 GHz
