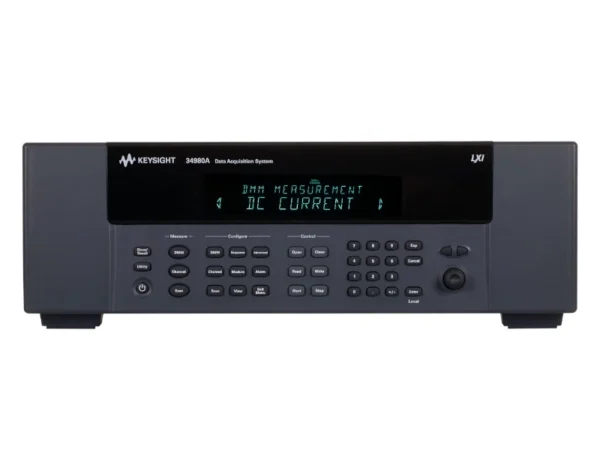

34980A multifunction switch/measurement unit

Reduce testing costs and expedite test system development with the Keysight 34980A multifunction switch/measure unit. It is ideal for medium- to high-density switch/measure applications in automated testing, design verification, and data acquisition. The 34980A is a compact, one-box system that’s easy to set up and offers fast startup times.

Key Features and Specifications

• Eight-slot mainframes, choice of 21 mix-and-match plug-in modules

• Integrated 6.5-digit DMM and DC voltage measurement with 0.004 percent accuracy

• Math functions: Mx B for custom linear conversions and converting raw inputs

• Standard interfaces: Ethernet/LAN, USB, and GPIB connectivity to PC Interface languages: SCPI-1999, IEEE-488.2 4,096 matrix cross-points in one mainframe or up to 560 two-wire multiplexer channels

• System switching to 26.5GHz, digital I/O, counter/totalizer functionality, and D/A convertors Scans up to 1,000 channels per second

• Scanning inputs: Analog 34921A, 34922A, 34923A, 34924A, and 34925A channels

• Scanning inputs: Digital 34950A/52A digital in and totalize Store up to 500,000 readings with a timestamp
