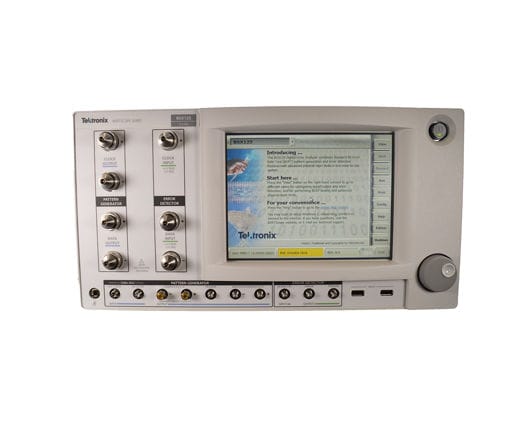

BSX125 Bit Error Rate Tester Patt Gen and Error An up to 12.5 G

The Tektronix BSX125 BERTScope BSX-series Bit Error Rate Tester introduces a receiver test platform capable of supporting emerging Gen4 standards and beyond. With the addition of powerful data processing and internal Tx equalization, the BSX125 BERTScope supports protocol-based handshaking and synchronization with your device under test (DUT), including interactive link training at data rates up to
12.5 Gb/s. As part of the BSX-series, the BSX125shortens the time to debug physical layer and link training issues, and provides the quickest path to compliance for a broad range of standards.
Key features of the BSX125 include the following:
Provides a single solution for Receiver stress testing, debug and compliance
Test Gen3 and Gen4 standards including PCIe, SAS, and USB3.1 and proprietary standards
DUT handshaking capability up to 32 Gb/s supporting RX test requirements for loopback initiation and adaptive link training for key standards such as PCIe and SAS
Protocol-aware pattern generation and error detection supports flexible stimulus response programmability and debugging of handshaking issues
Forward error correction (FEC) emulation option supports measurement of BER both before and after error correction for commonly used Reed-Solomon FEC codes
Calibration and test automation software available for key standards
The Tektronix BSX125 BERTScope is available for rent at Rentaltec
