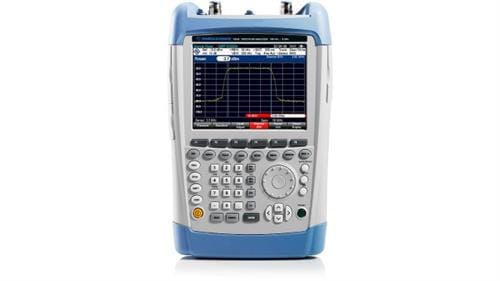

FSL3-03 3 GHz Spectrum Analyzer, Type N (f)

Spectrum Analyzer 9kHz – 3 GHz The spectrum analyzer R&S FSL leads its class with respect to its large number of standard functions.
* Full choice of detectors:
max, min, auto-peak, sample, RMS, average, quasi-peak
* CP/ACP/fast ACP measurement functions with a host of predefined standards (see ACP screenshot)
* Time domain power measurement
* Measurement of carrier-to-noise ratio C/N or C/N0 referenced to 1 Hz or channel bandwidth
* CCDF:
measurement of crest factor and amplitude probability function
* Automatic test routines for:
– Occupied bandwidth (OBW) – Third order intercept point (TOI) – AM modulation depth
* Adjustable number of trace points, max. 32001
* Editable limit lines including PASS/FAIL indication
* Level units:
– dBm, dBmicroV, dBmV, dBmicroA, dBpW, V, W, A
* Frequency counter featuring resolution of 1 Hz with measurement time of 50 ms
* Phase noise and noise marker with dBm/Hz and dBc/Hz results
* n-dB down functionality for fast determination of bandwidth
* Channel filters, shape factor <2 * EMI filters: 200 Hz (optional), 9kHz, 120 kHz * FFT filters from 300 Hz to 30 kHz, optional 1Hz to 30 kHz * Tracking generator * Gated sweep (optional) * LAN interface, VXI11 compatible for remote control * USB interface * Help functions * Operating system: Embedded Windows XP - Easy documentation of measurements - Remote desktop functionality - Compatibility (printer drivers, network, etc.) * Power measurements with R&S NRP power sensors
