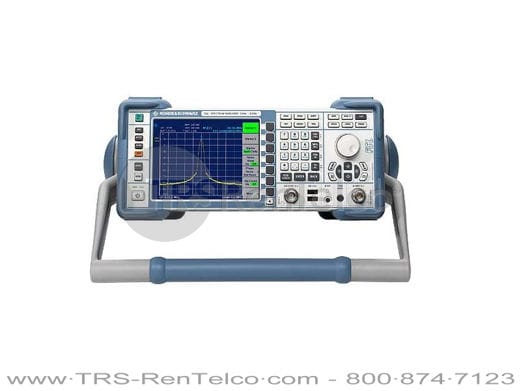

FSV3013 Signal Spectrum Analyser 10Hz – 13,6GHz, N(f)

R&S FSV3013 Signal & Spectrum Analyser 10 Hz to 13.6 GHz, N (f) (1330.5000.13)
• FSV3-B24 RF Preamplifier, 30 dB, 10 MHz to 13.6 GHz, 15 dB and 30 dB switchable
• FSV3-B28V 28V BNC connector for noise source control via instrument firmware
• FSV3-B114 CPU board with enhanced computing power and memory size for fast analysis of complex digital modulation schemes
• FSV3-K30 Noise Figure and Gain Measurement Application
• FSV3-K40 Phase Noise Measurement Application

The R&S FSV3000 signal and spectrum analyzer makes measurements at the push of a button, uses event based actions to capture events and has a SCPI recorder to make script programming simple – all helping to set up complex measurements in no time.
Fast measurement speeds for high throughput in production applications are another major advantage.

• Frequency range from 10 Hz to 4, 7.5, 13.6, 30, 44, 50 GHz
• Analysis bandwidth up to 200 MHz
• SSB phase noise at 10 kHz offset (1 GHz): –114 dBc/Hz
• GUI with multi-touch, SCPI recorder and event based actions
• Options for analog and digital signal analysis, including 5G NR
