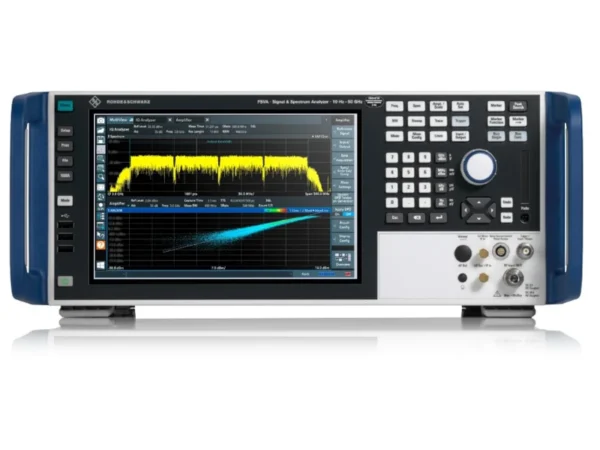

FSVA3000 Signal & spectrum analyser, from 2 Hz up to 54 GHz

R&S FSVA3000 Signal & spectrum analyser, key facts.

• Frequency range from 2 Hz to 4 GHz, 7,5 GHz, 13,6 GHz, 30 GHz, 44 GHz, 50 GHz and 54 GHz

• Analysis bandwidth up to 1 GHz

• SSB phase noise at 10 kHz offset (1 GHz): –127 dBc/Hz

• GUI with multi-touch, SCPI recorder and event-based actions

• Options for analog and digital signal analysis, including 5G NR

The FSVA3000 offers a performance level that until recently was only possible with high-end instruments. It is equally suitable for analysing frequency agile signals and wideband signals as for linearizing power amplifiers. With up to 200 MHz real-time analysis bandwidth, the instrument allows users to monitor the spectrum and to trigger on short-duration signals. The analyser supports all modern cellular and wireless standards, and its frequency ranges and bandwidth options perfectly match the requirements of 5G NR.

Available options:

• FSVA3004: 10 Hz to 4 GHz

• FSVA3007: 10 Hz to 7,5 GHz

• FSVA3013: 10 Hz to 13,6 GHz

• FSVA3030: 10 Hz to 30 GHz

• FSVA3044: 10 Hz to 44 GHz

• FSVA3050: 10 Hz to 50 GHz (with FSV3-B54G option, 10 Hz to 54 GHz)

The B710 option extends the low end of the frequency range to 2 Hz.

The FSVA3000 excels with high measurement speed without any compromise in RF performance. It provides high throughput and yield in cellular base station and component production and is also perfectly suited for use in development and verification labs. It offers functions and wizards that make the configuration of complex measurements fast and easy. Setting up RF parameters with touchscreen gestures is as easy as using your smartphone. The autoset feature automatically sets key parameters such as frequency, level and gating. An SCPI recorder, which translates manual operation into remote control command scripts, considerably speeds up script programming. And event-based actions support you when debugging your DUT by capturing and documenting rare events.
