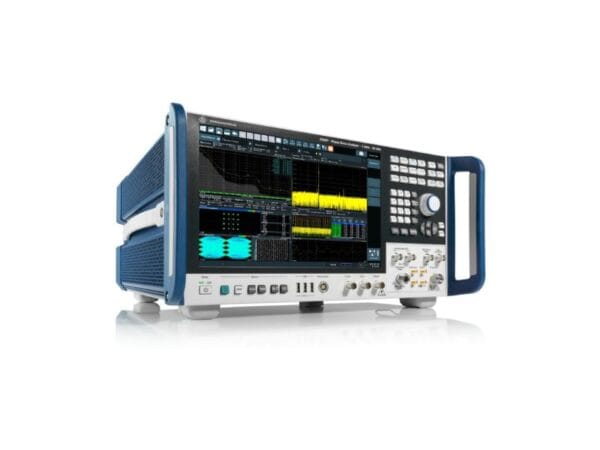

FSWP26 26,5GHz Phase Noise Analyser and VCO Tester, 3.5mm (m)

Rohde & Schwarz FSWP26, 1 MHz to 26.5 GHz (1322.8003.27)

• FSWP-B1, Signal and spectrum analyzer – 10 Hz to 26,5 GHz

• FSWP-B21, Support for harmonic mixers, includes LO/IF ports for external mixers

• FSWP-B4, High stability OCXO with low phase noise

• FSWP-B60, Cross correlation for phase noise analyzer

• FSWP-B64, Signal source for additive phase noise measurement, model dependent from 10 MHz to max 18 GHz

The R&S FSWP phase noise analyzer and VCO tester is very sensitive thanks to extremely low-noise internal sources and cross-correlation. It can measure phase noise and amplitude noise in mere seconds on highly stable sources such as those in radar applications. Additional options such as pulsed signal measurements, residual phase noise (including pulsed) characterization and integrated high-end signal and spectrum analysis make the R&S FSWP a unique test instrument.

• Frequency range from 1 MHz up to 50 GHz, 325 GHz with external mixers

• Phase noise: < –166 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)

• Max. analysis bandwidth: 320 MHz

• Cross correlation for very sensitivity of high amplitude and phase noise measurement in parallel, even on pulsed signals

• Simultaneous measurement of amplitude noise and phase noise

• Internal source for measuring residual phase noise, including on pulsed signals

• SCPI recorder to simplify code generation
