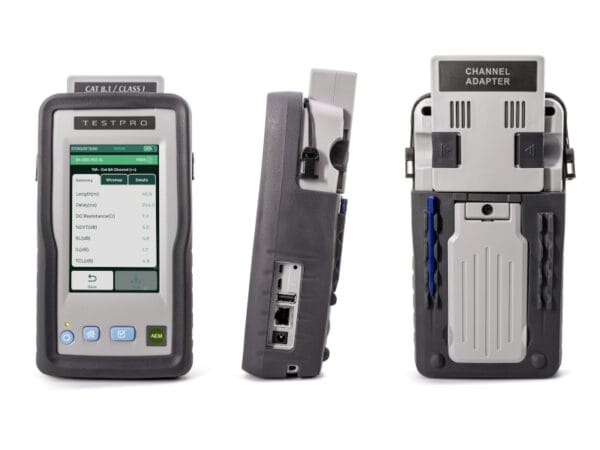

K60E TestPro CV100 Smart Building Test Kit for copper, PoE, muli-gigabit & network testing

The TestPro CV100 Multifunction Cable Certifier is purpose-built for today’s modern Smart Building network infrastructure.  It offers the most feature rich test platform available today, and the modular based platform allows for customization of the exact test suite needed. The K60E test kit combines both cable certification and network connectivity testing. It is used by System Integrators, Network Owners or Cable Contractors looking to add new service offerings. This kit provides Copper certification, PoE load testing, Multi-gigabit link speed testing/qualification 2.5Gbps/5Gbps/10Gbps SNR testing, Wired and wireless network testing with network discovery feature and Modular Plug Terminated Link (MPTL) testing (with included AD-6A-PCORD adapter, CAT6A). It comes standard with a PC based test reports management software, TestDataPro. It allows users to define projects and categorize test results into logical groupings once uploaded into the database. The database provides the ability to collaborate by viewing in-depth test details from any computer running TestDataPro software, as well as provide .pdf based printed reports. Users can combine multiple Autotests into a single report, such as Copper & Fiber test results, Multi-Gig Ethernet SNR/PoE, and Network Discovery.

Copper Certification test standards: ANSI/TIA-568.2-D, ISO 11801, ANSI/TIA-1152-A (Levels IIIe and 2G), IEC 61935-1 Ed. 4 (Levels IIIe and V) and IEC 61935-1 Ed. 5 Draft 46/595/CD (Levels VI Class I and Class II)
