Fabrikant: Keysight

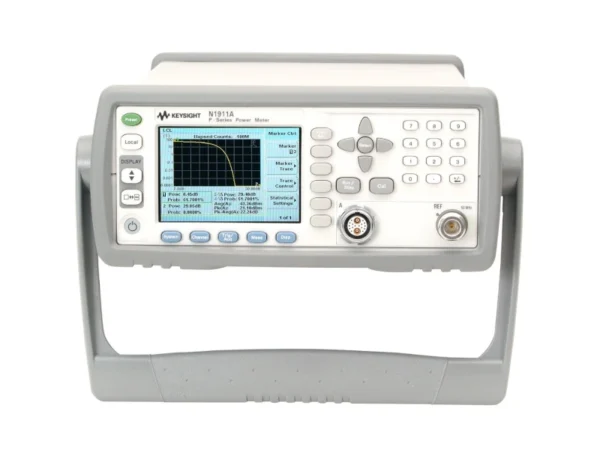

N1911A P-Series Single Channel Power Meter
The Keysight N1911A is a single channel wideband power meter that provides precise and repeatable power measurements. Used by R&D and manufacturing engineers, the N1911A is employed in the aerospace and defense (radar), wireless communications and wireless 802.11a/b/g networking industries.
Besides statistical data measurement of wideband signals (up to 30 MHz video bandwidth) with 100 M samples per second continuous sampling, measurements provided by the Keysight N1911A meter/sensor combination include:
Peak power
Average power
Peak-to-average ratio
Rise time
Fall time
Maximum power
Minimum power
The Keysight N1911A delivers a measurement frequency range from 50 MHz to 40 GHz with an internal zero and calibration capability, when used with the N192XA wideband power sensors.
Keysight N1911A
– Key Features and Specifications:
Video bandwidth of 30 MHz
USB, LAN and GPIB standard connectivity
100 Msample/s per second single shot real time capture
Single screen view for pulse measurement analysis
E932x power sensor compatible
Internal Zeroing and Calibration while connecting to the DUT
BenchVue software enabled
LXI-C Compliant
Calibration cycle
– 2 years
