Fabrikant: Tektronix
P6251 1GHz, 42V Probe, Diff HV, WITH TekProbe-BNC Interface, ,

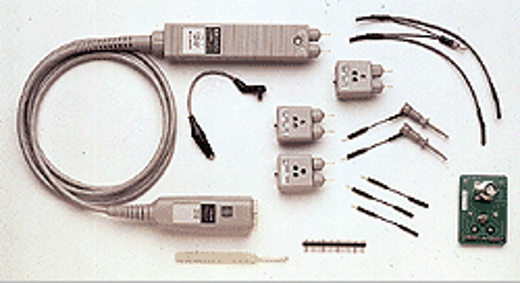

1 GHz High Voltage Differential Probe
Key performance specifications
1 GHz probe bandwidth
<1 pF differential input capacitance
1 MO differential input resistance
±42 v (DC + pk AC) differential input voltage
>18 dB CMRR (at 250 MHz 50X attenuation)
Key features
Outstanding electrical performance
Selectable bandwidth-limiting filters
DC reject
Versatile DUT connectivity
Small compact probe head for probing small geometry circuit elements
Straight pin, square pin, solder down, variable pitch standard accessories
Robust design for reliability
Easy to use
Provides automatic units scaling and readout on the oscilloscope display
Connect directly to the TekProbe™ interface oscilloscopes, or to TekConnect® oscilloscopes using TCA-BNC adapter
