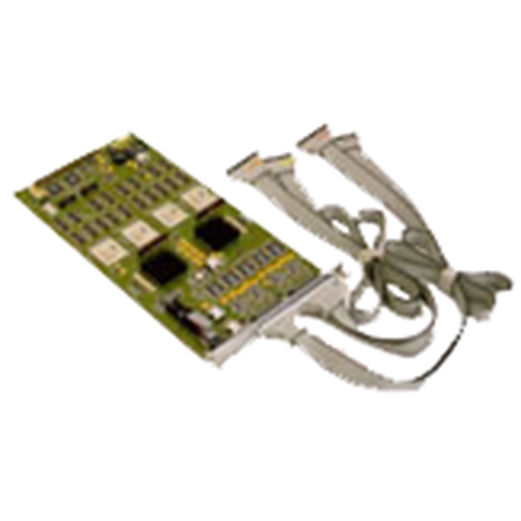

16740A 68 Channel 200 MHz State, 2 GHz Timing Logic Analyzer

The Keysight 16740A logic analysis module offers industry-leading memory depth and performance for debugging complex digital designs. 1M of acquisition memory helps link a symptom of a problem to the cause
Innovative hardware in the 16740A improves the system performance
200 MHz state speed supports today’s and tomorrow’s processors and technology trends
2 GHz timing zoom provides simultaneous high-speed state and timing acquisition through a single probe connection to the device under test
Trigger technology combines new trigger functionality with a user interface that is easy to use and understand
68 to 340 channels of data capture on the same time base and trigger
Eye finder automatically adjusts setup and hold for highest confidence in measurements on high-speed buses
