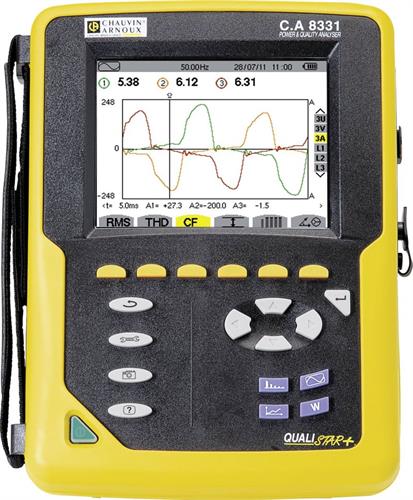

CA8331 Power and Energy quality Analysers

Designed for test and maintenance departments working in industrial or administrative buildings, the Qualistar+ C.A 8331 can be used to obtain a snapshot of the main features characterizing the quality of the electrical network.

Easy to handle and particularly compact, this instrument also offers a large number of calculated values and several processing functions. The C.A 8331 is equipped with 3 voltage measurement channels and 3 current measurement channels.
When the current sensors are connected to the C.A 8331, it recognizes them automatically. It also offers the possibility of mixing different types of current sensors and configuration of the ratios allows direct reading of the measurements.

  • TRMS AC+DC voltage and current, frequency
  • Power values: W, VA, var, VAD, PF, DPF, cos f, tan f
  • Energy values: Wh, varh, VAh, VADh, , BTU, toe, Joule
  • Harmonics from 0 to the 50th order, phase
  • Flicker (Pst and Plt)
  • Recording of a selection of parameters at the maximum sampling rate over a period from 4 hrs to 2 weeks
  • Peak detection
  • Vectorial representation
  • IP53 / IK08
  • USB communication
  • Dimensions / weight: 240 x 180 x 55 mm / 1.9 kg



Angebotsoptionen

Wählen Sie, ob Sie diesen Artikel mieten, kaufen oder Rent2Buy wählen möchten.

Produktpreis:  2.100,00
Gesamt Optionen:
Bestellung Gesamt:
