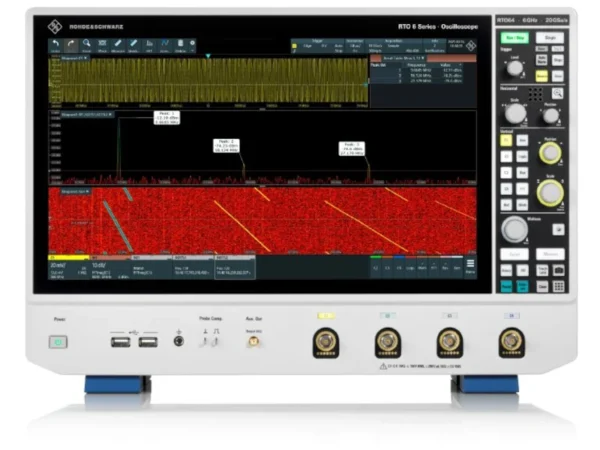

RTO6 Oscilloscope, 600 MHz up to 6 GHz, 4 channels

R&S RTO6 Oscilloscope, key facts.

• 6 GHz maximum bandwidth

• 1 million waveforms per second

• 9,4 ENOB for ultimate signal integrity

• 2 Gpoints maximum memory

• Exclusive frequency zone trigger

The RTO6 oscilloscopes provide superior signals for insight into your applications. The large 15.6″ touchscreen and streamlined GUI, combined with high waveform update rate, excellent signal fidelity, digital trigger and deep responsive memory serve as a fully integrated test solution for frequency, protocol and logic analysis. The rich measurement toolset for RTO6 oscilloscopes and streamlined user interface help quickly solve circuit issues, from simple to complex.

Available models:

• RTO64 with option RTO6-B90 option: = 600 MHz

• RTO64 with option RTO6-B91 option: = 1 GHz

• RTO64 with option RTO6-B92 option: = 2 GHz

• RTO64 with option RTO6-B93 option: = 3 GHz

• RTO64 with option RTO6-B94 option: = 4 GHz

• RTO64 with option RTO6-B96 option: = 4 GHz and = 6 GHz on 2 channels

Today’s designs cross multiple measurement domains: time, frequency and protocol. RTO6 oscilloscopes simplify debugging of systems with different signal types by providing a flexible user interface that allows these domains to be viewed simultaneously. The R&S digital trigger architecture also enables triggering on complex signal details. This unique trigger system even lets you specify “where” to trigger in the time or frequency domain simply by drawing a special zone directly on the waveform screen.
