Fabricant : Keysight

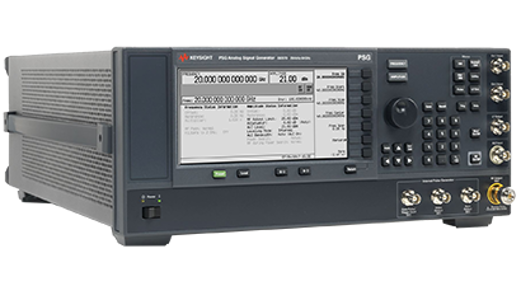

E8257D-521 100 kHz – 20 GHz PSG Analog Ultra High Output Power, 3.5 mm
The Keysight E8257D-521 is an analog signal generator that offers a frequency range of 10 MHz to 20 GHz. The E8257D-521 can be used to test high-power devices and overcome test system losses. It can be applied towards Doppler radar, ADC, and receiver-blocking tests. Here are the Keysight, E8257D-521’s specifications.
E8257D-521 – Key Specifications:
Output Power @1 GHz:
-135 dBm to 21 dBm
Phase Noise @1 GHz (20 kHz offset):
-143 dBc/Hz
Frequency Switching:
< 7 ms
Harmonics @1 GHz:
-55 dBc
IQ Modulation BW Internal/External:
n/a
Non-Harmonics @1 GHz:
-80 dBcSweep Mode:
List
StepRamp Baseband Generator Mode:
n/a
Software-General Purpose:
AM, FM, PM
PulseSoftware-Cellular/Wireless Connectivity:
n/a
Software-Audio/Video Broadcasting:
n/a
Software-Detection/Positioning/Tracking/Navigation:
n/a
Waveform Playback Memory:
n/a
Frequency Modulation-Maximum Deviation @1 GHz:
2 MHz Frequency Modulation-Rate @100 kHz
Deviation:
DC to 10 MHz Phase Modulation-Maximum Deviation in Normal Mode:
10 rad to 1280 rad
Phase Modulation-Maximum Deviation in High-BW Mode:
1 rad to 128 rad
Amplitude Modulation-Maximum Depth:
90%
Amplitude Modulation-Rate:
0 to 100 kHz
Applications Available:
Yes
Analog:
Yes
The Keysight E8257D-521 is available for rent at Rentaltec
