MTS-4000V2 with E4146A Quad OTDR MM 850/1300nm 26/24dB + SM 1310/1550nm 37/35dB

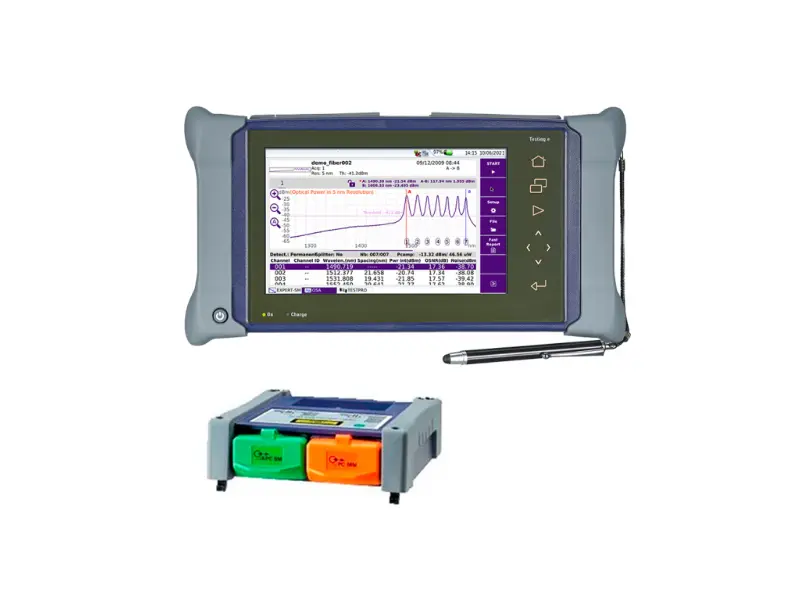

Viavi T-BERD / MTS-4000V2 mainframe with E4146A Quad OTDR MM 850 / 1300 nm 26 / 24dB & SM 1310 / 1550 nm 37 / 35 dB

The VIAVI Quad OTDR module is the ideal test tool for installers/contractors, wireless service providers, or any user dealing with both single-mode and multimode applications every day.
It is perfect for use in installing, turning up, and maintaining premises and enterprise, access, metro, and wireless fronthaul/backhaul networks.
The VIAVI Quad OTDR module features fast acquisition time, sharp resolution, up to a 26 dB multimode dynamic range, and up to a 37 dB single-mode dynamic range for installing and maintaining fiber links.
Its integrated light source, accessible through both OTDR ports (multimode and single-mode), let users quickly identify fiber without switching ports and conduct a full range of fiber certification tests.

Key Features

• Up to 37 dB dynamic range in single-mode and 26 dB in multimode
• Quad-wavelength version with 850, 1300, 1310, and 1550 nm
• Integrated continuous wave (CW) light source
• TIA/IEC pass/fail thresholds
• Propagation delay measurement in multimode (TIA-568-C)
• Certifies Tier 2 premises networks
• IEC 61280-4-3-compliant using an external modal controller
