FSWP50 56GHz Phase noise analyser & VCO tester w. Preamp, 1,85mm (m)

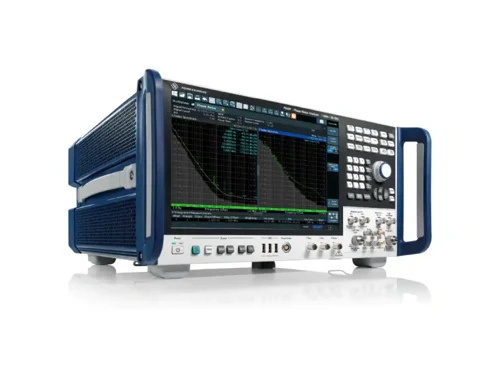

Rohde & Schwarz FSWP50, 1 MHz to 56 GHz Phase noise analyser and VCO tester (1322.8003.51)

• FSWP-B1, Signal and spectrum analyser – 10 Hz to 50 GHz
• FSWP-B21, Support for harmonic mixers, includes LO/IF ports for external mixers
• FSWP-B24, RF preamplifier, 30 dB, 100 kHz to 50 GHz
• FSWP-B60, Cross correlation for phase noise analyser FSWP50 from 1 MHz to 50 GHz (56 GHz with option B56G)
• FSWP-B56G, Maximum Frequency 56 GHz for FSWP50 for absolute and additive phase noise test

The R&S FSWP phase noise analyzer and VCO tester is very sensitive thanks to extremely low-noise internal sources and cross-correlation.
It can measure phase noise and amplitude noise in mere seconds on highly stable sources such as those in radar applications.
Additional options such as pulsed signal measurements, residual phase noise (including pulsed) characterization and integrated high-end signal and spectrum analysis make the R&S FSWP a unique test instrument.

• Frequency range from 1 MHz up to 50 GHz, 325 GHz with external mixers
• Phase noise: < –166 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)
• Max. analysis bandwidth: 320 MHz
• Cross correlation for very sensitivity of high amplitude and phase noise measurement in parallel, even on pulsed signals
• Simultaneous measurement of amplitude noise and phase noise
• Internal source for measuring residual phase noise, including on pulsed signals
• SCPI recorder to simplify code generation
