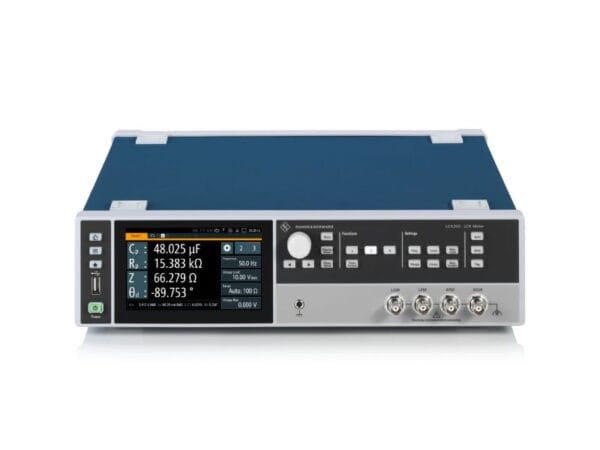

LCX200 LCR meter, DC, 4Hz – 10MHz

The R&S LCX LCR meters are versatile, extremely accurate and perform measurements quickly. They are ideal for challenging applications in research, development and production. Two instrument models and various options cover applications with a test signal frequency of up to 10 MHz. Internal and external bias functions, comprehensive analysis options and versatile test fixtures expand the wide range of possible applications.

LCX200 LCR meter:

• Frequency range: DC, 4 Hz to 10 MHz (at 100 Ohm) – DC, 4 Hz to 1 MHz (at 10 Ohm) (LCX-K210)
• Includes kelvin clip lead (LCX-Z2) and transformer test cables (LCX-Z5)
• Measurement functions: Cp, Cs, Lp, Ls, D, Q, G, Rp, Rs, Rdc, R, X, Z, Y, Td, Tr, B, M, N
• Test signal voltage (RMS):
  • = 1 MHz: 10 mV to 10 V
  • = 5 MHz: 50 mV to 2 V
  • > 5 MHz: 100 mV to 1 V
• Test signal current:
  • = 1 MHz: 1 mA to 100 mA
  • > 1 MHz to = 5 MHz: 1 mA to 20 mA
  • > 5 MHz: 1 mA to 10 mA

Both LCX100 and LCX200 models combine high measurement speed, accuracy and versatile measurement capabilities. This makes them the ideal instruments for standard measurements in development, for material analysis in research and for fast production testing. With their broad measurement ranges, they also cover applications with extremely low and extremely high impedances. Four measurement modes are available: Superfast: = 4 ms, Fast: = 15 ms, Medium: = 100 ms, Slow: = 500 ms. The basic accuracy for impedance measurements is ±0.05%, and for phase measurements ±0.03°.
