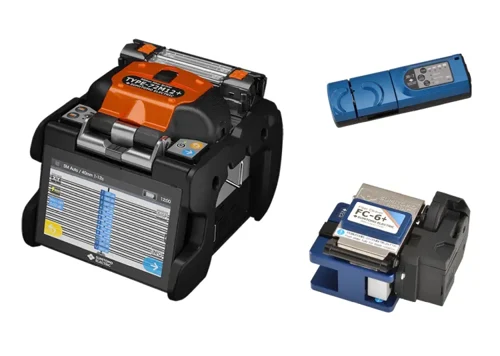

T-72M+ Ribbon Fusion Splicer with FC-6R+ Cleaver

Sumitomo T-72M+ Ribbon Fiber Splicer with FC-6R+ Cleaver

The Sumitomo TYPE-72M12+ is a next-generation, AI-powered ribbon fusion splicer designed for ultra-fast and high-precision mass fusion splicing of up to 12 fibers.
Equipped with patented NanoTune AI technology and an Enhanced Auto Clamping Adjustment System (ACAS), it drastically reduces splice loss and minimizes re-work, even when handling poorly cleaved fibers.
Featuring the industry’s only dual independent heating ovens and a rugged, smartphone-like touch interface, it provides ultimate efficiency and outstanding durability in the harshest field environments.

Key Features

• AI-Powered Splicing: Integrated NanoTune™ technology dynamically optimizes arc conditions to maximize splicing success rates.
• Enhanced-ACAS: Automatically adjusts fiber clamping based on the fiber count to eliminate offsets and minimize insertion loss (typical 0.05dB for SMF).
• Maximum Efficiency: Delivers ultra-fast 11-second splicing alongside a dual independent oven system with a 28-second heat shrink time.
• Versatile Ribbon Handling: Tool-free, easily replaceable V-grooves allow seamless switching between 200µm and 250µm fiber pitches.
• Long Battery Life: High-capacity smart battery supports up to 180 splice and heating cycles on a single charge.
• Heavy-Duty Durability: IP52-rated water and dust resistance combined with drop protection from up to 76 cm.
• Smart Connectivity: Cloud-based data management and remote support via wireless SumiCloud™ integration.
