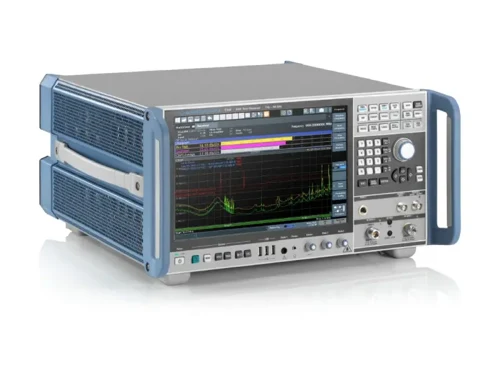

ESW44 1Hz – 44GHz EMI test receiver, 2,92mm (m)

Rohde & Schwarz ESW44 1Hz – 44GHz EMI test receiver, 2,92mm (m)

ESW44 – EMI Test Receiver for certification measurements compliant to CISPR 16-1-1 and Mil-Std 461 from 1 Hz to 44 GHz

• ESW-B8 – Resolution Bandwidths 20/30/40/50/80 MHz additionally
• ESW-B24 – Low noise amplifier, 30 dB 150 kHz to 44 GHz
• ESW-B1000R – Extension to 970 MHz real-time FFT bandwidth
• ESW-K55R – Realtime spectrogram with CISPR and MIL standard detectors and bandwidths

R&S ESW EMI test receiver for compliance testing
Outstanding RF characteristics, high dynamic range and measurement accuracy make the R&S ESW ideal for fast and reliable certification measurements.
The receiver meets the most stringent requirements in line with CISPR, EN, MIL-STD-461, DO-160 and FCC.
Every R&S ESW comes with an FFT-based time domain scan for fast measurements.
The wideband extension option has up to 970 MHz of FFT bandwidth, letting the receiver measure CISPR bands C and D all at once.
The high bandwidth is captured in real-time, even when CISPR detectors are enabled.

Key facts

• Frequency ranges from 1 Hz to 8 GHz, 26.5 GHz or 44 GHz
• In line with CISPR 16-1-1, ANSI C63.2, MIL-STD-461 and FCC standards
• Highest dynamic range and accuracy
• Ultrafast measurements with FFT based time domain scan
• Real-time spectrogram with up to 970 MHz bandwidth (option)
