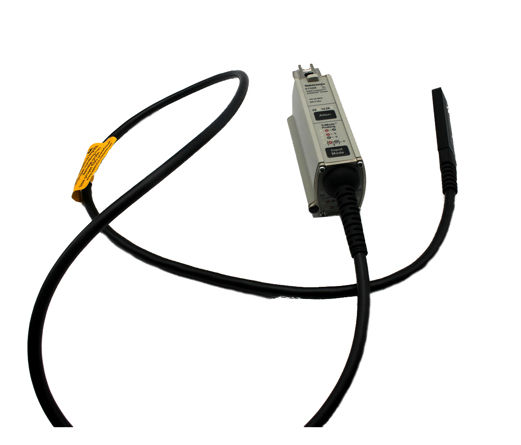

1169B 12 GHz InfiniiMax II series probe amplifier

Accurately measure differential and single-ended signals with the high-performance Keysight 1169B 12GHz InfiniiMax II series probe amplifier. The Keysight 1169B offers outstanding connectivity solutions for high-density ICs and circuit boards, and offers real-time bandwidth to 12GHz specified and has 13GHz typical performance. With a DC attenuation ratio of only 3.45: 1, the 1169B offers low noise floor and low loading for making highly sensitive signal measurements without compromising on signal integrity. This flexible probe amplifier is loaded with measured S-parameters to give extremely accurate response correction and to support even the toughest and most demanding mechanical access requirements. Keysight 1169B

Features and Specifications:

Bandwidth:

• 12GHz (specified)

• 13GHz (typical)

Ranges:

• Dynamic range: 3.3V peak-to-peak

• DC offset range: /- 16V

• Maximum voltage: /- 30V, mains isolated

Input impedance:

• Differential input R: 50 k ohmes

• Differential input C: 0.21 pF

• Single-ended input R: 25 k ohmes

• Single-ended input C: 0.35 pF
