ESRP7 EMI test receiver 9kHz – 7GHz, precertification measurement, N(f)

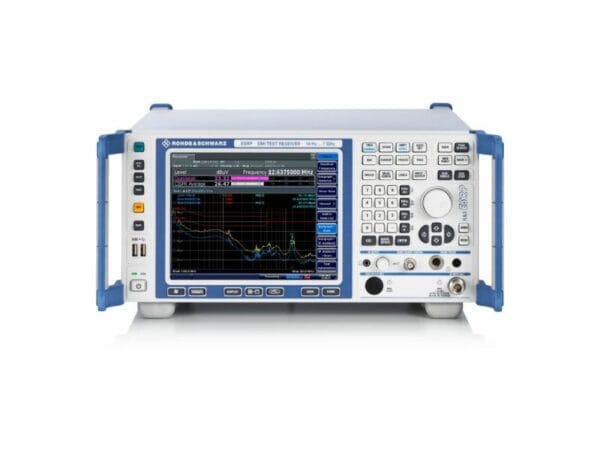

R&S ESRP7 EMI Test Receiver (1316.4500.07)
• ESRP7 – EMI test receiver 9kHz-7GHz, precertification measurements
• ESRP-B2 – Preselection and preamplifier
• FSV-B4 – OCXO
• FSV-B9 – Tracking generator 9 kHz – 7 GHz
• FSV-B22 – RF Preamplifier 20 dB, 9 kHz to 7 GHz

Engineered for reliable precompliance and powerful diagnostics

The R&S ESRP EMI test receiver has been designed for diagnostic measurements during development and for precompliance measurements to prepare products for final certification testing.
It measures electromagnetic disturbances in the 10 Hz to 7 GHz frequency range, using either conventional stepped frequency scans or FFT based time domain scans to significantly speed up measurements.
The R&S ESRP is also a full-featured, powerful signal and spectrum analyzer for lab applications. Touch screen and straightforward menu structure make the R&S ESRP easy to operate in any mode.

• EMI test receiver and signal/spectrum analyzer combined in one box
• Weighting detectors: PK+, QPK and CISPR and RMS average (CISPR 16-1-1)
• Resolution bandwidths in line with CISPR 16-1-1 and MIL-STD
• Preselection and preamplifier
• Fast FFT based time domain scan
