Manufacturer: Rohde & Schwarz

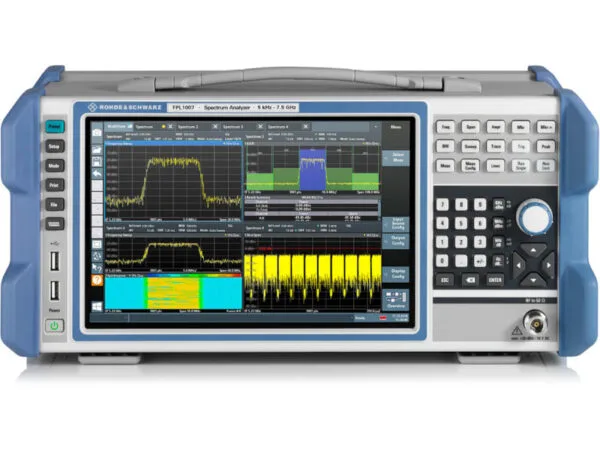

FPL1007 Signal & spectrum analyser, 5kHz-7,5GHz, with EMI diagnostic functionality
R&S FPL1007 signal & spectrum analyzer, 5 kHz to 7,5 GHz (FPL-EMI7 / 1304.0004P62).
• FPL1007 Spectrum Analyzer, 5 kHz to 7,5 GHz
• FPL1-B5 Additional Interfaces
• FPL1-B9 Internal Generator
• FPL1-B22 RF Preamplifier
• FPL1-K54 EMI Meas. Application
This analyzer is the ideal tool for (EMI) debugging and precompliance applications.
Key specifications:
• Frequency range: 5 kHz to 7,5 GHz
• Resolution bandwidth (–3 dB): Sweep filters: 100 kHz to 10 MHz in 1/2/3/5 sequence – FFT filters: 1 Hz to 50 kHz in 1/2/3/5 sequence
• DANL at 1 GHz (preamp on): < –163 dBm/Hz with the FPL1-B22
• EMI filters (6 dB): CISPR 16-1-1:200 Hz, 9 kHz, 120 kHz, 1 MHz – MIL-STD-461:10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz, 1 MHz
• EMI detectors (CISPR 16-1-1): Quasi-peak, CISPR-average, RMS-average
• Number of points: 101 to 200 001 with FPL1-K54
