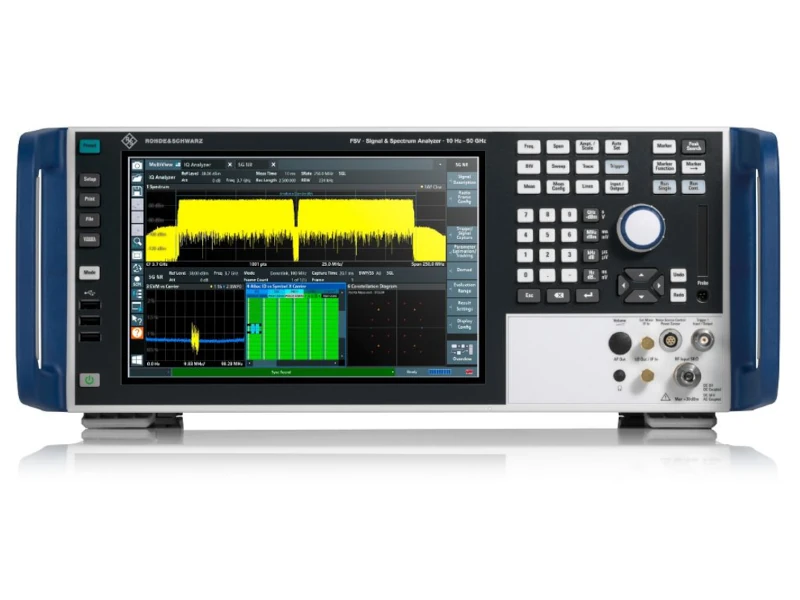

FSV3000 Signal & spectrum analyser, 10 MHz up to 50 GHz

R&S FSV3000 Signal and spectrum analyser, key facts.

• Frequency range from 10 Hz to 4 GHz, 7,5 GHz, 13,6 GHz, 30 GHz, 44 GHz and 50 GHz

• Analysis bandwidth up to 200 MHz

• SSB phase noise at 10 kHz offset (1 GHz): –114 dBc/Hz

• GUI with multi-touch, SCPI recorder and event based actions

• Options for analog and digital signal analysis, including 5G NR

The FSV3000 signal and spectrum analyser performs measurements at the push of a button, uses event-based actions for capture and makes script programming simple with a SCPI recorder – for quick setups of complex measurements. Fast measurement speeds for high throughput in production applications are another major advantage.

Available models:

• FSV3004: 10 Hz to 4 GHz

• FSV3007: 10 Hz to 7,5 GHz

• FSV3013: 10 Hz to 13,6 GHz

• FSV3030: 10 Hz to 30 GHz

• FSV3044: 10 Hz to 44 GHz

• FSV3050: 10 Hz to 50 GHz

The FSV3000 has been designed for high measurement speed. This is a major advantage for production environments in particular, which benefit from fast spectral measurements, high speed signal demodulation and rapid switching between different measurement modes. The instrument’s analysis bandwidth of up to 200 MHz enables digital modulation analysis for cellular and wireless standards, including 5G NR. With up to 200 MHz realtime analysis bandwidth, users can monitor the spectrum and trigger on short-duration signals.
