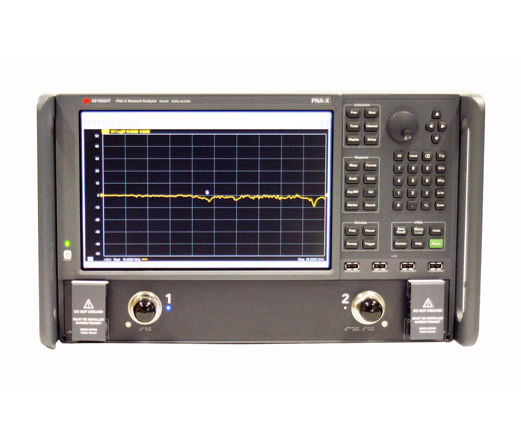

N5242B-222 2-port, 10 MHz – 26.5 GHz PNA-X Network Analyzer, 3.5 mm (m)

Replace stacks of equipment at your test stations with the Keysight N5242B-222 two-port network analyzer. The Keysight N5242B-222 offers powerful and versatile solutions for microwave testing of frequencies above 10GHz.
Get faster, better insights into component behavior and cut down on test time with the N5242B network analyzer. Accurately test linear and nonlinear device characterization with superior error correction features. Measure active devices, such as amplifiers and frequency converters, with the cutting-edge performance and efficiency of the world’s most integrated analyzer.
The Keysight N5242B-222 network analyzer can easily deliver on applications like S-parameter measurements, noise-figure measurements, gain compression, X-parameters and balance measurements, pulsed RF, and IMD.
Keysight N5242B-222 Features and Specifications:
Two-port, configurable test set, source attenuators, receiver attenuators, second source, combiner, mechanical switches
Maximum frequency:
26.5GHz
Dynamic range:
127 dB
Damage input level:
> 30 dBm (RF), > 7 V (DC)
Output power:
13 dBm
Trace noise:
0.002 dBrms
Harmonics:
-60 dBc noise floor -114 dBm
Best speed at 201 point, 1 sweep 6 ms
The Keysight N5242B-222 two-port, 26.5GHz PNA-X network analyzer is available for rent at Rentaltec
