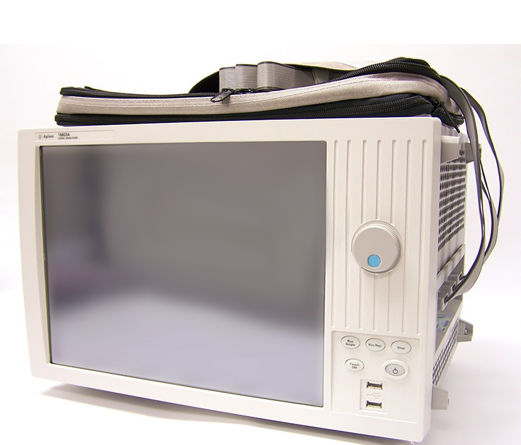

16803A 102-Channel Portable Logic Analyzer

Capture and display signals from any digital circuit or system with the Keysight 16803A 102-Channel Portable Logic Analyzer. Measure data from state machine traces and protocol decodes to timing diagrams using the 16803A. Analyze the timing relationship between multiple signals and perform accurate signal monitoring.
The Keysight 16803A offers high-performance measurement capabilities, innovative probing, logic-analyzer application support, pattern generation, and analysis tools to meet all your digital debug needs.
Keysight 16803A Features and Specifications:
250 ps resolution (4 GHz) timing zoom with 64 K depth
15-inch color display with touch screen
102 logic-analyzer channels, 48 pattern-generator channels
1.0 GHz/500 MHz (half/full-channel) conventional timing with deep memory
500 MHz transitional timing
Comprehensive single-ended signal support; threshold is adjustable in -5 V to 5 V (10 mV increments)
