E3631A 80W, 1 x 6V/5A, 2 x 25V/1A, triple output DC power supply

The Keysight (formerly Agilent) E3631A power supply is an 80W, triple-output power supply with GPIB and RS-232 interfaces. Even if you’re on a tight budget, it offers essential capabilities for general-purpose applications and flexible system features in a compact, multi-output package.
The E3631A 80W power supply (6V, 5A) provides low noise and excellent regulation with high accuracy and resolution. You can also save and recall the functions and manage parameters easily with SCPI compatibility.
Key Features and Specifications

Output 1 Rating: 0V to 6V, 0A to 5A
Output 2 Rating: 0V to 25V, 0A to 1A
Output 3 Rating: 0V to -25V, 0A to 1A
Ripple and Noise (20Hz to 20MHz)

Normal-mode voltage: 350 uVrms/2 mV p-p, 350 uV rms/2 mV p-p, 350 uV rms/2 mV p-p
Normal-mode current: 500 uA rms, 500 uA rms, 2 mA rms
Common-mode current: 1.5 uA rms, 1.5 uA rms, 1.5 uA rms
Read-Back Accuracy at 25 degreesC to /- 5 degreesC

Voltage: 0.05 percent 10 mV, 0.05 percent 10 mV, 0.1 percent 5 mV
Current: 0.15 percent 4 mA, 0.15 percent 4 mA, 0.2 percent 10 mA
Max output power: 30W
AC input (47Hz to 63Hz): 100 Vac /-10 percent (Opt 0E9)/115 Vac /-10 percent (Std)/230 Vac /-10 percent (0E3
Maximum output power: 30W
Maximum output current: 5A
Maximum output voltage: 6V
Number of DC outputs: Three
Auto-tracking feature adjusts the 25V and -25V outputs simultaneously
Outputs track each other to within 1 percent for easy adjustments in the power supply circuits requiring balanced voltages
Safety Rating
These power supplies comply with the following regulations.

Certified to CSA 22.2 No. 231 (for E3631A), No. 1010.1 (for E3632A/33A/34A)
Conforms to IEC 1010-1; carries CE marks
Complies with CISPR-11, Group 1, Class A
Applications
The E3631A 80W power supply helps meet the demands in areas such as R&D design verification, production testing, and Q&A verification. This clean, reliable power supply lets you evaluate assemblies or applications and develop repair strategies for production.
E3631A 80W Triple Output Power Supply Accessories

User and service guide
Product reference CD
AC power cord
Optional accessories include:

0L2 extra manual sets
1CM rackmount kit
E3600A-100 test lead kit
Reach out to our team to learn about available accessories.

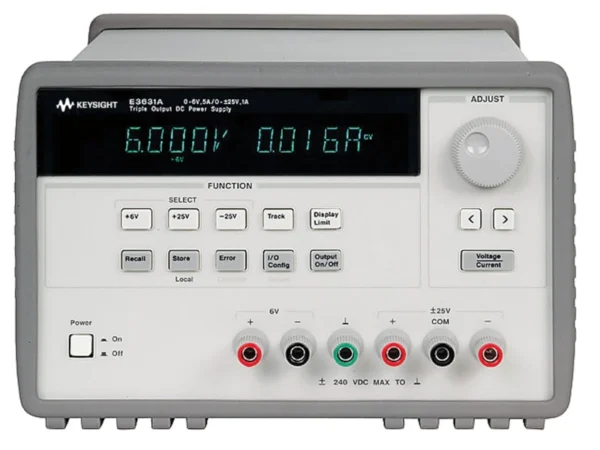

What Features Are Available on the E3631A Front Panel –
The E3631A comes with an intuitive interface and a vacuum fluorescent display. An On/Off switch disconnects the output terminals and adjusts the outputs in order to work safely with the circuit. You can use the knob to adjust the output at the required resolution for precise, reliable results. Easily recall and save up to three front panel setups.
Rent or Rent 2 Buy Keysight (formerly Agilent) E3631A triple output power supply devices online from electronic test equipment industry leader, Rentaltec. You can also check out similar devices like the model E3633A and our complete catalog of DC power supplies.
We understand that time is money, so we give you 24/7 customer support and fast shipping options .
Fill out the form on the Contact Us page and specify your requirements or call +32 25323232 to request custom quotes and more product information.
