FSW43 Signal & Spectrum Analyser 2Hz – 43GHz, 2.92mm (m)

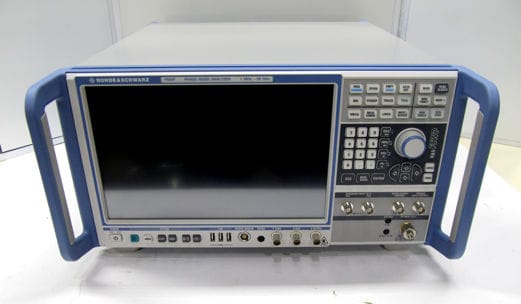

R&S FSW43 Signal- and Spectrum Analyzer (1331.5003.43)
• FSW43 – Signal- and Spectrum Analyzer 2 Hz to 43 GHz
• FSW-B21 – LO/IF connections for external mixers
• FSW-B24 – RF preamplifier, 30dB, 100kHz to 43GHz
• FSW-B1200 – Extension to 1200 MHz signal analysis bandwidth
• FSW-K70 – Vector signal analysis

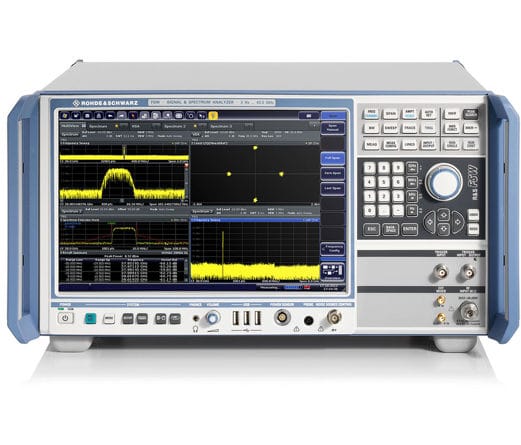

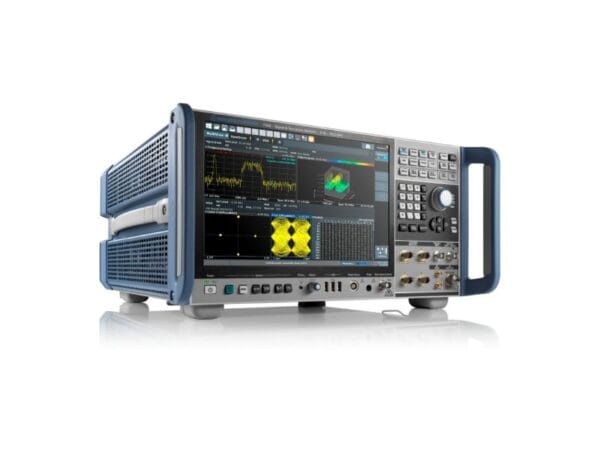

The Rohde & Schwarz FSW43 is a signal and spectrum analyzer developed for the microwave range.

The R&S FSW43 can analyze microwave applications with a frequency range of up to 43.5 GHz, however this range can be extended to 110 GHz with application of the brand’s harmonic mixers.
The RF performance of the FSW43 makes it useful for wireless, satellite, and radar applications.

• Frequency range from 2 Hz to 43.50 GHz (with external harmonic mixers from Rohde & Schwarz up to 500 GHz)
• Unparalleled low phase noise and best sensitivity on the market
• Low phase noise of -137 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
• -88 dBc dynamic range (with noise cancellation) for WCDMA ACLR measurements
• Up to 8.3 GHz analysis bandwidth
• < 0.4 dB total measurement uncertainty up to 8 GHz
• Real-time analysis up to 800 MHz bandwidth
• SCPI recorder simplifies code generation
• High dynamic range enables outstanding EVM performance
• Multiple measurement applications can be run and displayed in parallel
