N9030B-550 50 GHz PXA Signal Analyzer, 2.4 mm (m)

The Keysight Technologies N9030B-550 PXA signal analyzers are ideally suited for high-performance research and development (R&D) applications in aerospace/defense and commercial wireless communications. The PXA analyzes signals over wider bandwidths, reduces measurement uncertainty, and reveals previously hidden signals with noise floor extension (NFE). Unravel complex signals through the PXA’s broad set of measurement applications and demodulation capabilities or add real-time spectrum analysis capabilities with an upgradeable option.

•  Analyze more with a wide frequency range of 2 Hz to 50 GHz with up to 510 MHz analysis bandwidth. 9030B-550:  2 Hz to 50 GHz

• See small signals in the presence of large ones with up to 75 dB of spurious-free dynamic range (SFDR).

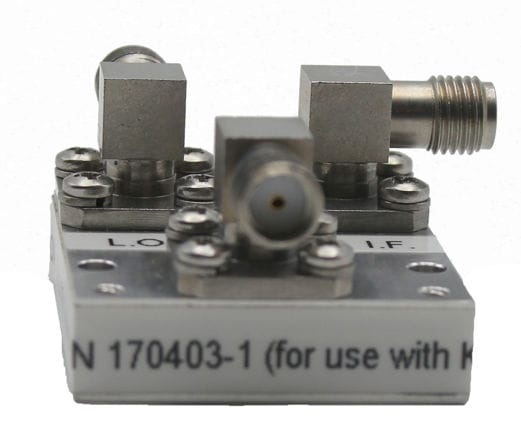

• Extend the frequency up to 110 GHz with Keysight smart mixers Record, analyze, and simulate real-world scenarios with gap-free streaming up to 255 MHz

• Capture transient or intermittent signals with optional real-time spectrum analysis capabilities

• Meet stringent data security requirements with a removable solid-state drive and other optional features.
