Manufacturer: Rohde & Schwarz

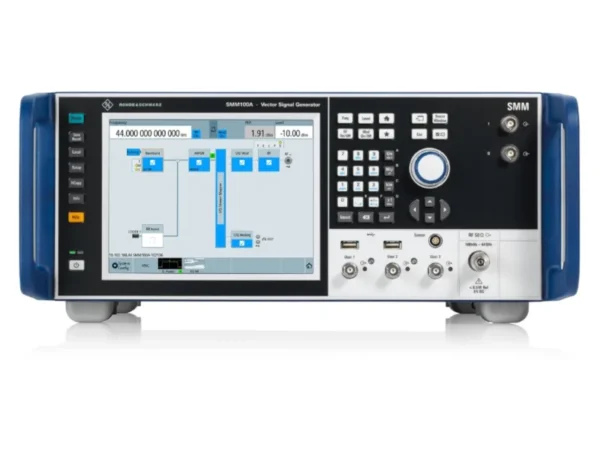

SMM100A vector signal generator, 100 kHz up to 44 GHz
R&S SMM100A vector signal generator, key facts.
- Frequency range from 100 kHz to 44 GHz
- Internal RF modulation bandwidth of up to 1 GHz
- Excellent modulation frequency response, EVM and ACPR
- 5G NR signal generation up to 44 GHz
- Support for WLAN requirements for RF frequency, bandwidth and performance
The R&S SMM100A vector signal generator provides remarkably good RF characteristics across the entire frequency range from 100 kHz to 44 GHz. The instrument covers the bands up to 7.125 GHz used by the wireless standards for 5G NR FR1 and Wi-Fi 8 as well as the 5G NR FR2 bands up to 44 GHz. The internal baseband generator in this generator supports a maximum RF modulation bandwidth of 1 GHz. Digitally modulated broadband signals can thus be generated as required by the prevalent wireless standards. The SMM100A is well prepared for future bandwidth requirements.
Available models:
- SMM-B1006: 100 kHz to 6 GHz
- SMM-B1007: 100 kHz to 7,5 GHz
- SMM-B1012: 100 kHz to 12,75 GHz
- SMM-B1020: 100 kHz to 20 GHz
- SMM-B1031: 100 kHz to 31,8 GHz
- SMM-B1044: 100 kHz to 44 GHz
Depending on the test requirements, the SMM100A can be configured for production or development applications. The vector signal generator is a economically attractive solution for the playback of predefined waveforms with an arbitrary waveform generator (ARB). The optional baseband generator makes real-time capabilities available as required. Complex signal settings can be handled directly on the instrument – no external software is needed for signal generation.
